Selected Installation Screws
Dell Optiplex, Precision, and “non hot-plug” standalone server models have a flexible blue plastic 3.5-inch hard drive frame – with no screws required. The rest of the Dell PowerEdge server models require screws to attach the hard drive to the hard drive frame, which makes life a little more difficult for us....
NO ANYMORE MISSING Installation Screws!
....It might sound ridiculous, but one of the most common problems we see is missing mounting screws, or screws that are simply the wrong size. And, obviously, without the proper screws, you can’t install your hard drive.
Installation Screws - Strong and Perfect fitting

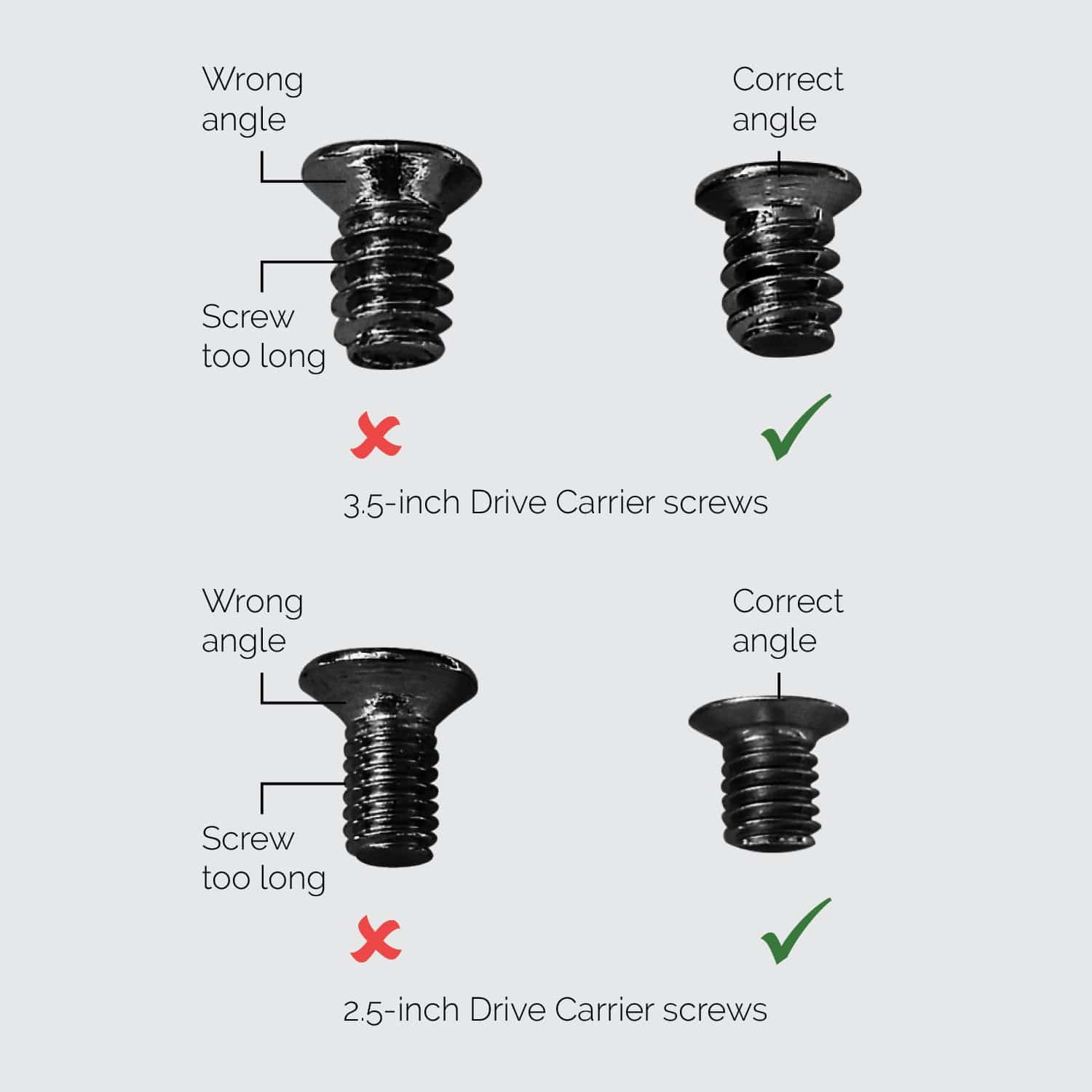

Generally, you should use the shortest screws needed to reach through whatever brackets hold the HDD.If the screws are too long and you tighten them all the way, you could damage the drive, but screws that are too short won’t hold things in place properly.

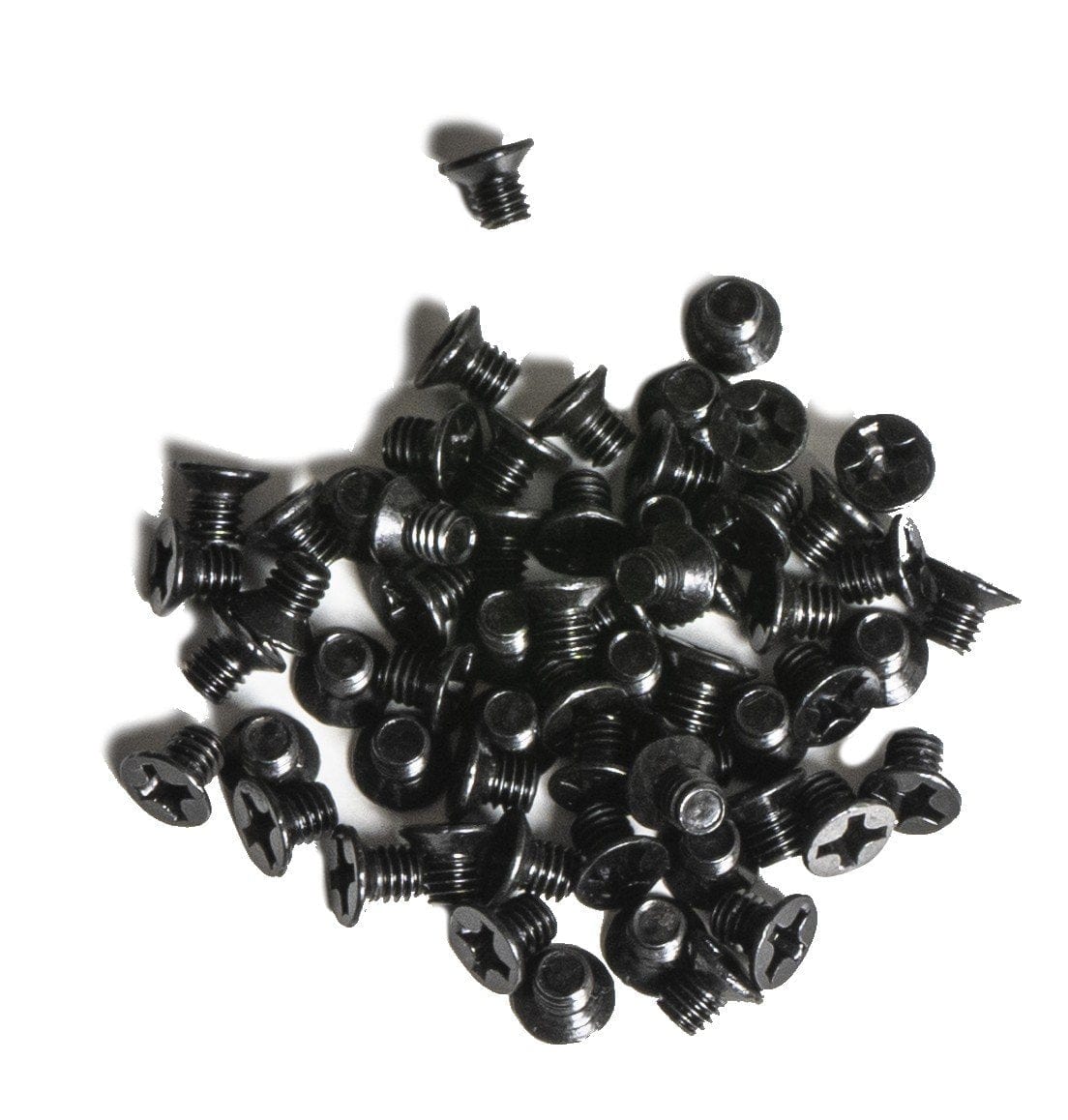

Strong mounting screws and amount of EXTRA SCREW

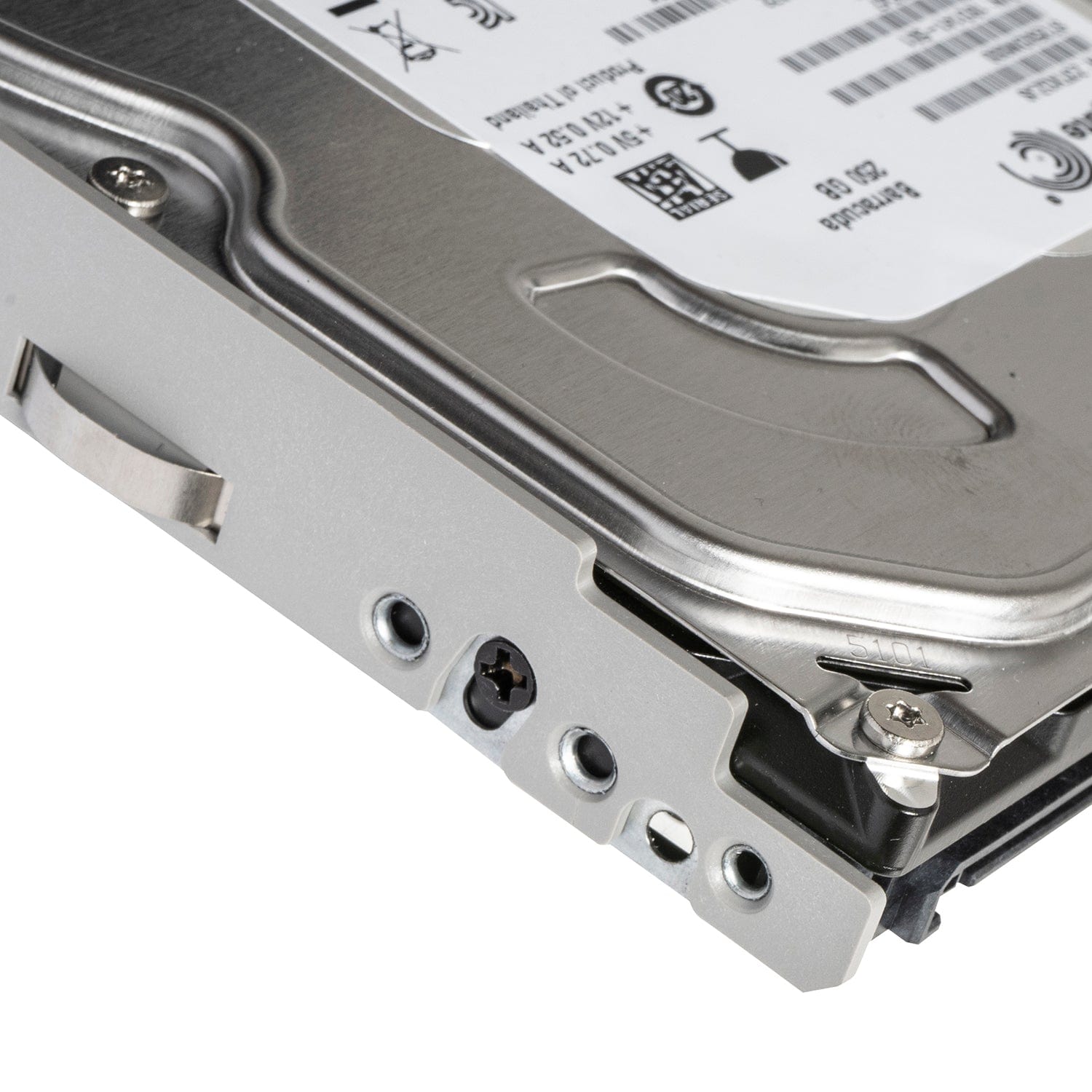

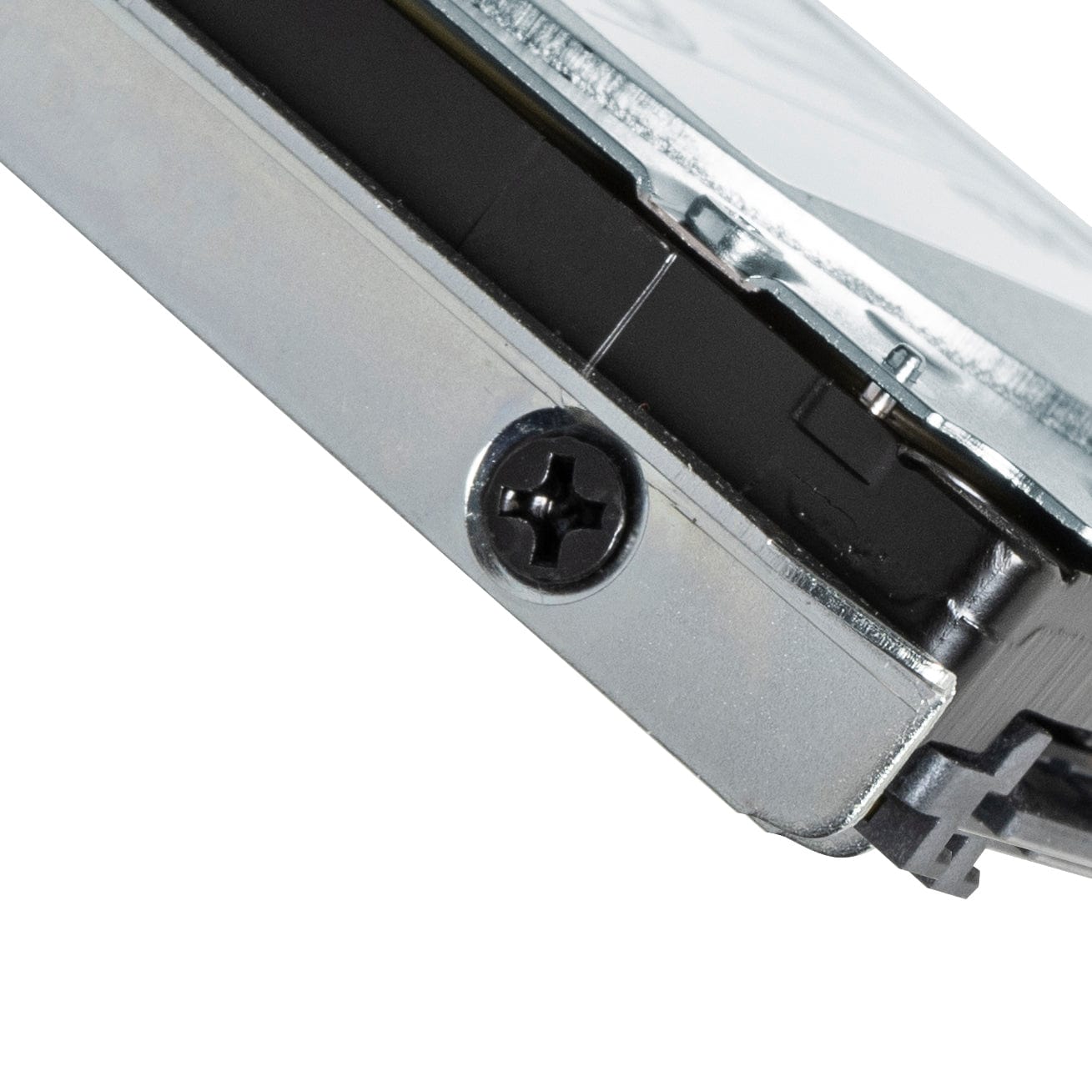

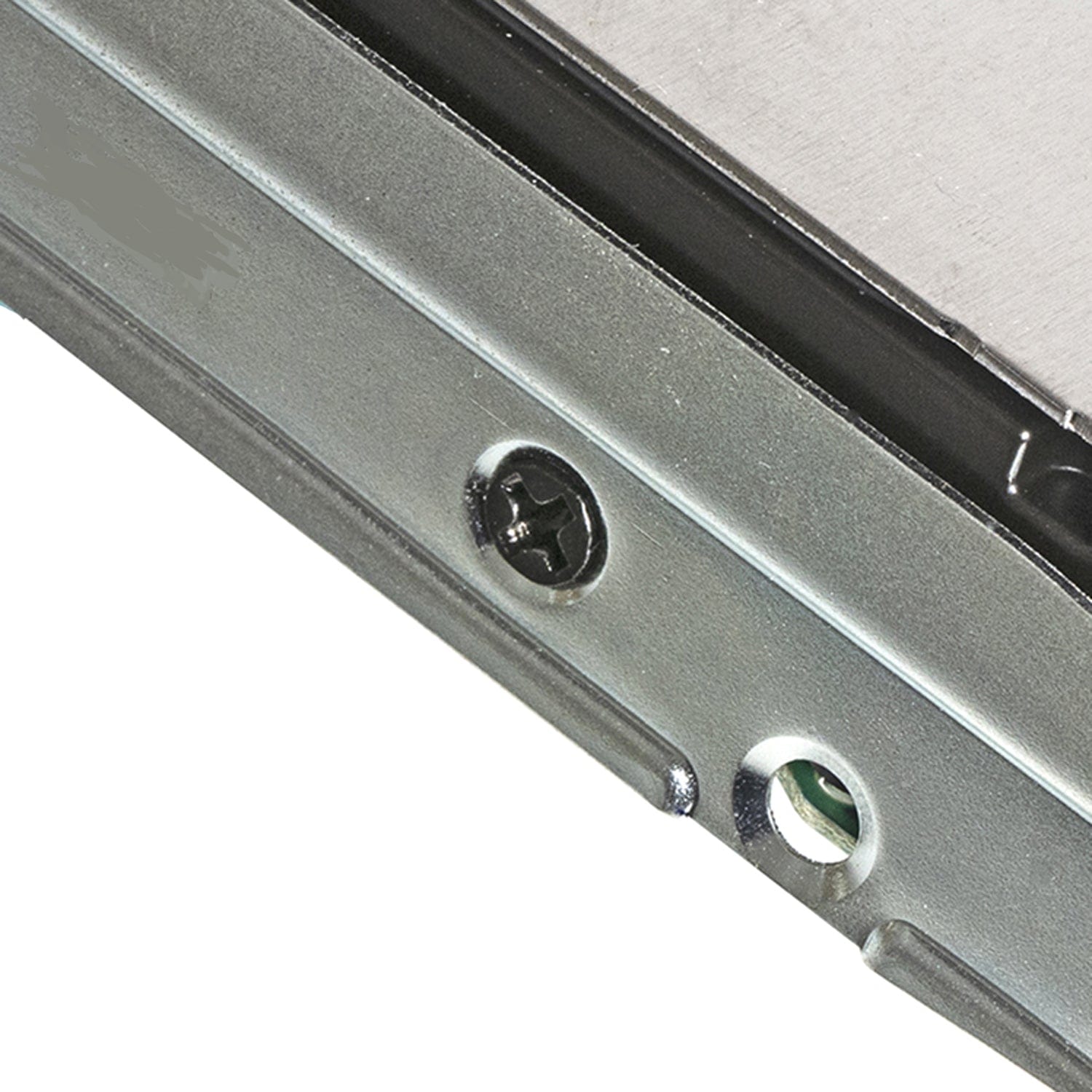

Hard drives need to be screwed to the hard drive carrier frame with four mounting screws. Of course, 2.5-inch hard drives need smaller screws than 3.5-inch hard drives. However, there is a special converter you can use to install a 2.5-inch hard drives into a 3.5-inch drive bay –but in that case, you’ll need even more screws. Eleven, instead of four.
Installation Instructions
2.5-inch
16th-14th Generation
3.5-inch
16th-14th Generation
3.5" with converter
16th-14th Generation
2.5-inch
13th-11th Generation
3.5-inch
13th-11th Generation
3.5" with converter
13th-11th Generation

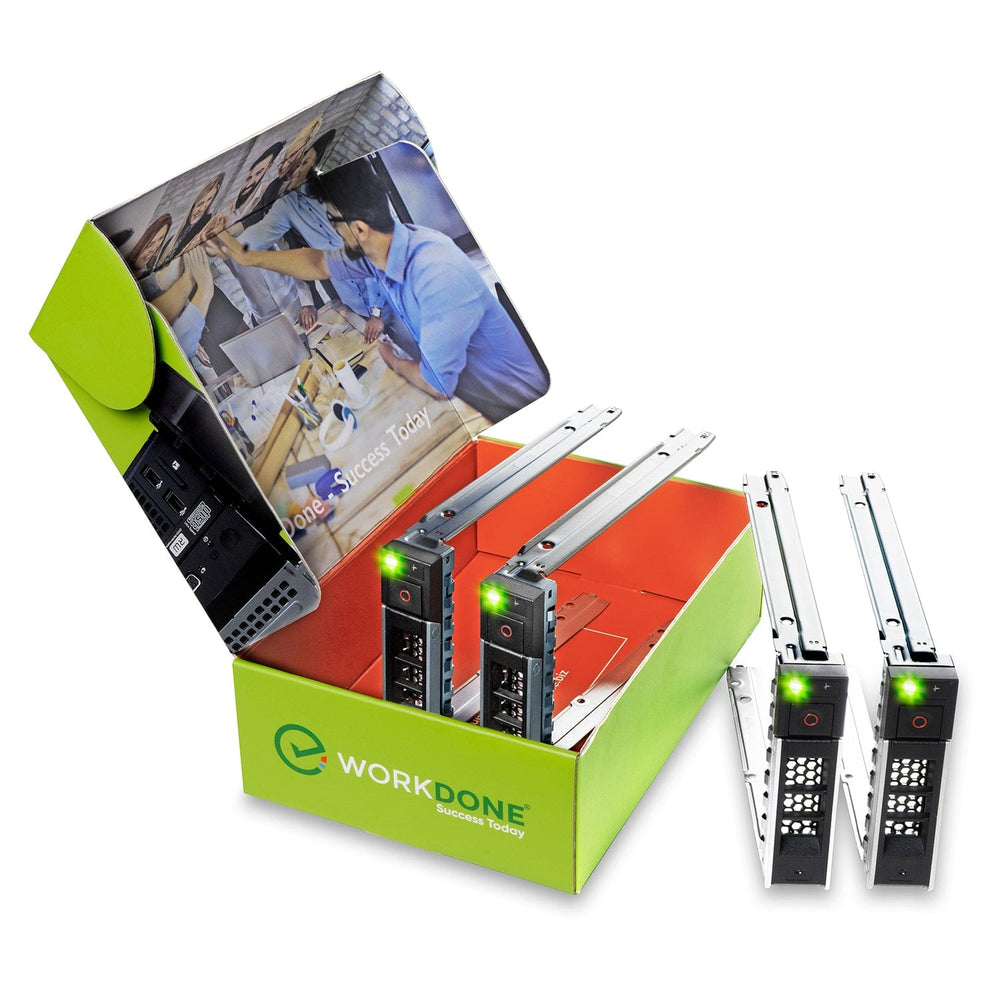

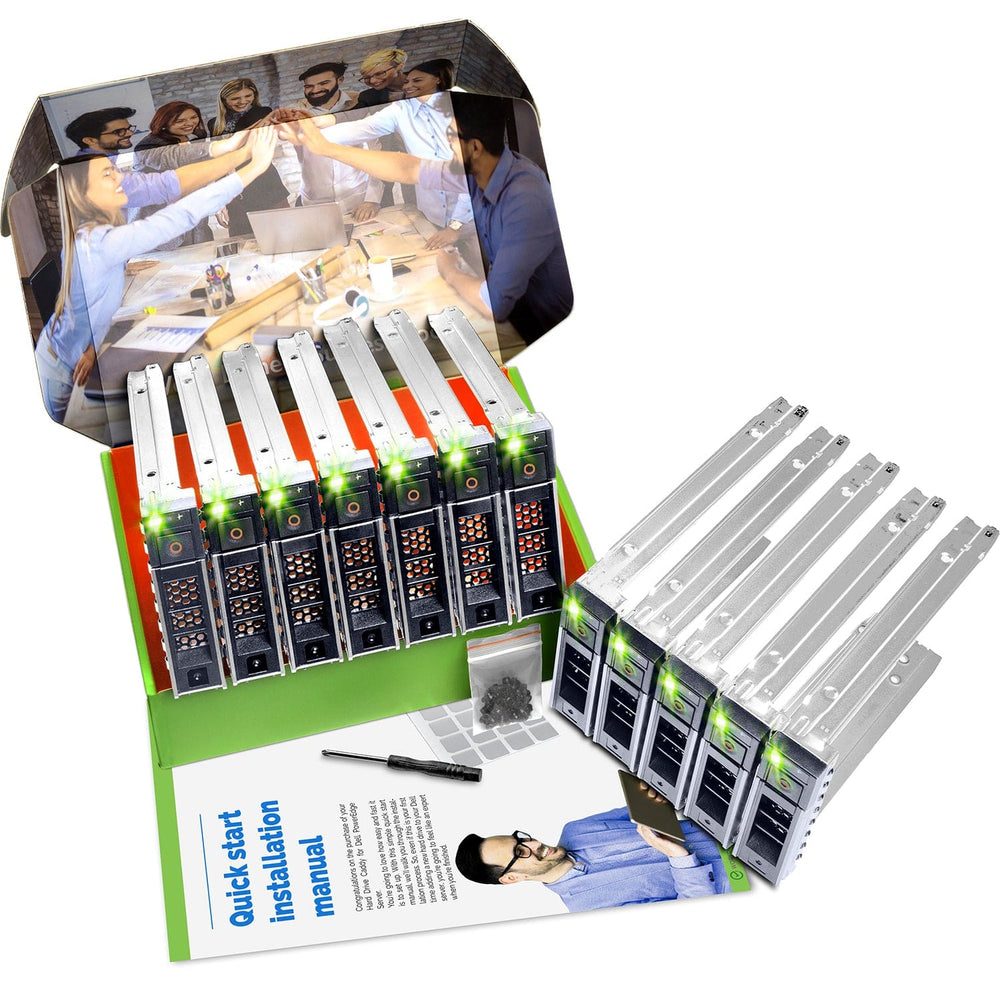

Extra strong Product Box
Organize your frames effortlessly with WORKDONE Our top-opening design provides easy access, while individually packed frames ensure optimal protection. Keep your frames in perfect order.
Screwdriver included
Speed up installation with the included high-quality screwdriver.
Quick Start Installation Manual
The enhanced multilingual installation guide contains everything you need, including helpful tables and installation pictures. The products always come with a printed version and you can also download the PDF version whenever you need it.
Discover the New Manual Today
Select the product you need and download the updated manual via the support portal.
